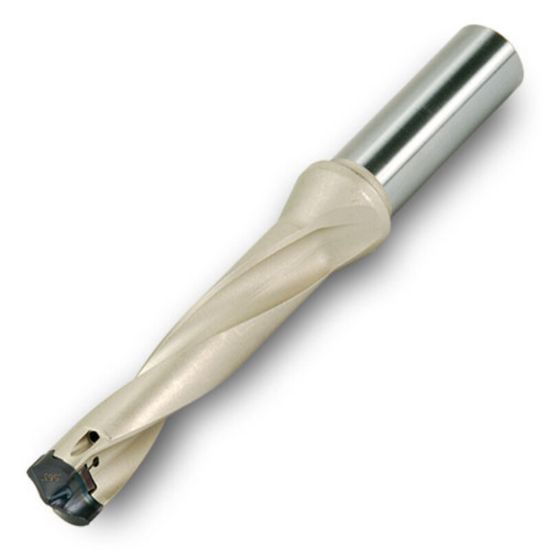

INGERSOLL YD0900045B9R01 0.3543 (9.0 mm) QwikTwist Body

ISO: YD0900045B9R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3209132
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Dia 0.3543 9.00MM
Dia Deep 5.0XD
Machine Side Connection Size 0.5000 12.70MM
Cut Dia Max 0.3700 9.40MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 1.7700 44.96MM
Cut Dia Min 0.3543 9.00MM
Flutes/Inserts 2
Included Angle 140°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
