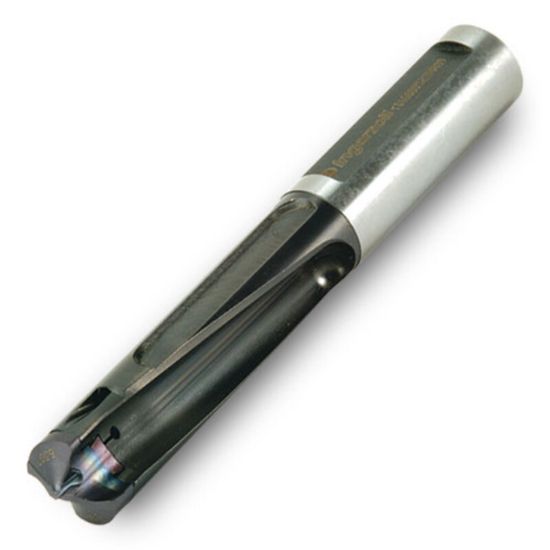

INGERSOLL YD0800028SDR00 .3150-.3307 QwikTwist Body

ISO: YD0800028SDR00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3221107
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Drilling
Package Size 1
Shipping State Illinois
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cut Dia Min 0.3150 8.00MM
Overall Len 3.1100 78.99MM
Dia Deep 3.5XD
Flute Length 1.1000 27.94MM
Cutter Dia 0.3150 8.00MM
Cut Dia Max 0.3310 8.41MM
Flutes/Inserts 2
Included Angle 140°
Machine Side Connection Size 0.3150 8.00MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
