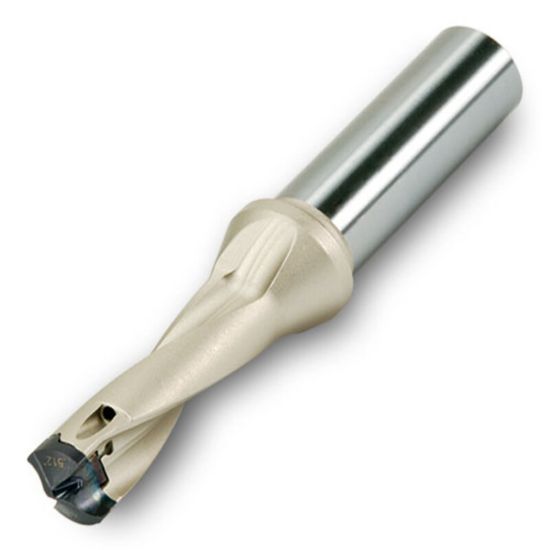

INGERSOLL YD0750022B9R01 0.2953 (7.5 mm) QwikTwist Body

ISO: YD0750022B9R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3209667
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.3110 7.90MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Tool Material Carbide
Dia Deep 3.0XD
Cutter Dia 0.2953 7.50MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Included Angle 140°
Cut Dia Min 0.2953 7.50MM - M
Machine Side Connection Size 0.5000 12.70MM
Flute Length 0.8700 22.10MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
