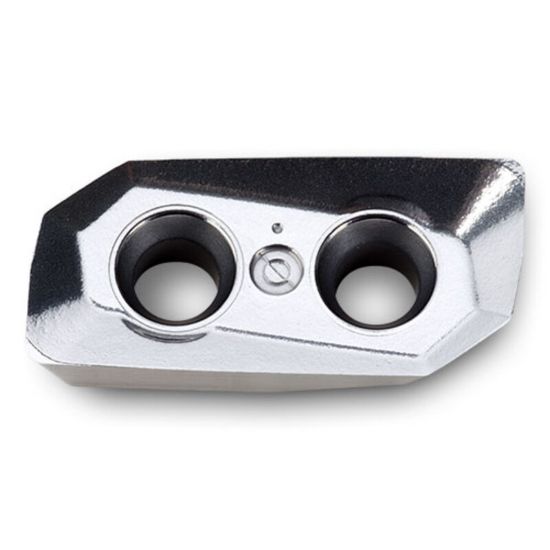

INGERSOLL XPET140408FR-PW IN15K Milling Insert Paralelagram 0.031 Rough Air

ANSI: XPET140408FR-PW IN15K

ISO: XPET140408FR-PW IN15K

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5812792
Delivery date: 3-5 days
$23.13

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

UNCOATED FOR NON FERROUS

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Grade IN15K
Insert/Tool Insert
Application Milling Insert
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Package Size 10
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Depth Of Cut Max 0.6200
Insert Size Ic 14
Cut Rating Aluminum, Gray Iron, High Temp
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
Insert Style XP
