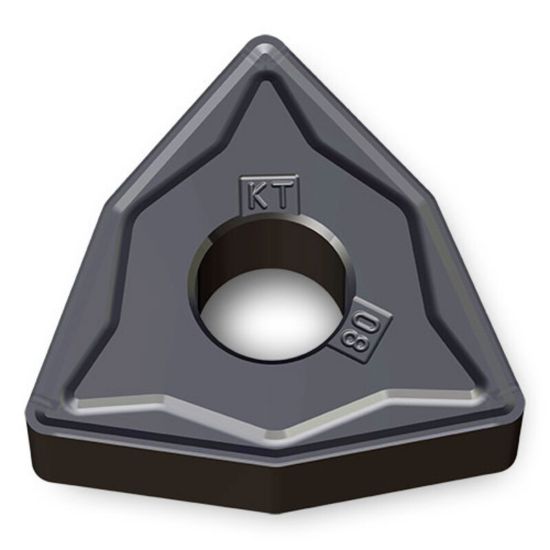

INGERSOLL WNMG433KT TT7015 Turning Insert Trigon TiCN + Al2O3 0.047 Corner Radius

ANSI: WNMG433KT TT7015

ISO: WNMG080412KT TT7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5580910
Delivery date: 3-5 days
$9.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Wear resistant CVD coated grade for general machining of gray and ductile cast irons in continuous and interrupted conditions

Products specifications
Attribute name Attribute value
General Product Information
Grade TT7015
Insert/Tool Insert
Insert Type Negative
Made In USA No
Shipping State Illinois
Coating TiCN + Al2O3
Insert Application Roughing
Application Turning Insert
Package Size 10
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating Ductile Iron, Gray Iron
Insert Size Ic 12 "43"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Cutting Edge Mat Carbide
