  • INGERSOLL WJ5F-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 6 Flute Coolant 0.22 Max DOC 1.570 OAL

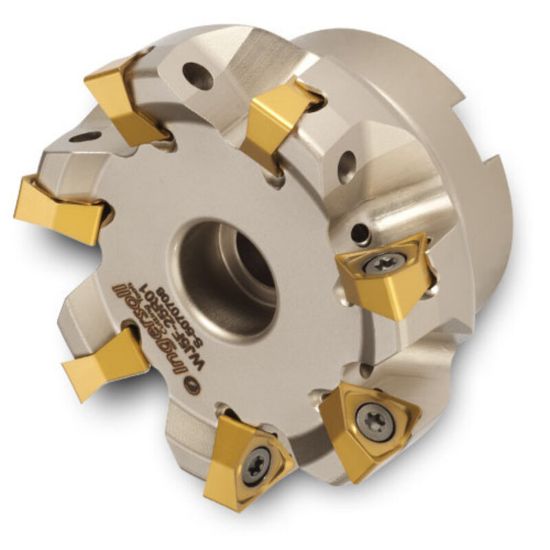

Picture of INGERSOLL WJ5F-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 6 Flute Coolant 0.22 Max DOC 1.570 OAL

INGERSOLL WJ5F-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 6 Flute Coolant 0.22 Max DOC 1.570 OAL

ANSI: WJ5F-20R01

ISO: WJ5F-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2911306
Delivery date: 3-5 days
$575.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Illinois
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.5700 39.88MM
Insert Size Ic 6
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 0.2200
Cut Dia Min 2.0000 50.80MM
Cutting & Machining Properties
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Max Ramp Angle 1.40°
Coolant Thru Yes
