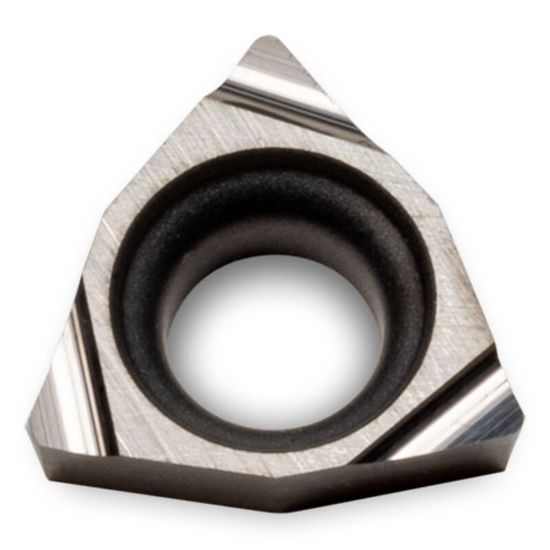

Picture of INGERSOLL WCGT020102L-FF PV3010 Turning Insert Trigon TiN 0.008 Corner Radius

INGERSOLL WCGT020102L-FF PV3010 Turning Insert Trigon TiN 0.008 Corner Radius

ANSI: WCGT020102L-FF PV3010

ISO: WCGT020102L-FF PV3010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6305602
Delivery date: 3-5 days
$17.89

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Turning Insert
Grade PV3010
Made In USA No
Package Size 10
Shipping State Illinois
Insert Application Finishing
Insert Type Positive
Coating TiN
Dimensional Specifications
Insert Size Ic 02 "1.2"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Corner Radius 0.0080 0.20MM
Cutting & Machining Properties
Insert Style WC
Insert Shape/Cutter Pocket Shape Trigon
Cutting Edge Mat Cermet
