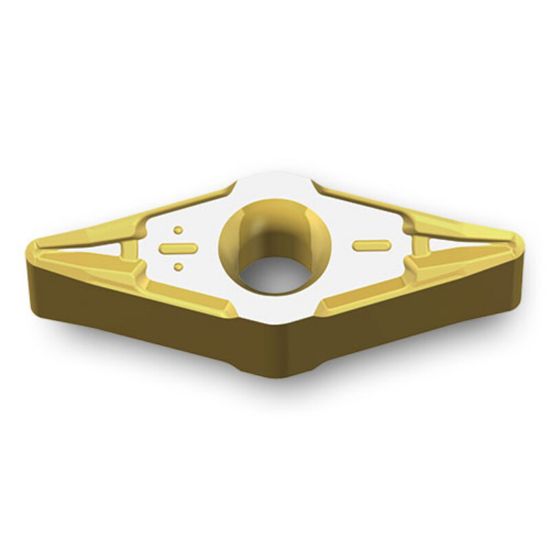

INGERSOLL VNMX2.530.5FS PV3010 Turning Insert 35.0° TiN 0.008 Corner Radius

ANSI: VNMX2.530.5FS PV3010

ISO: VNMX130402FS PV3010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6140250
Delivery date: 3-5 days
$10.19

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Turning Insert
Grade PV3010
Package Size 10
Insert Application Finishing
Insert/Tool Insert
Coating TiN
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Insert Size Ic 13 "2.5"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat Cermet
Insert Style VN
