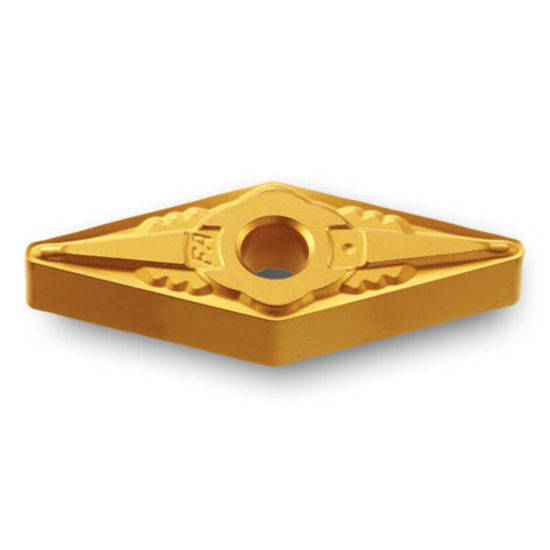

INGERSOLL VNMG332FA CT3000 Turning Insert 35.0° 0.031 Corner Radius

ANSI: VNMG332FA CT3000

ISO: VNMG160408FA CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5702779
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Grade CT3000
Shipping State Illinois
Package Size 10
Insert Application Semi Finishing, Roughing
Insert/Tool Insert
Insert Type Negative
Application Turning Insert
Made In USA No
Dimensional Specifications
Cut Rating <48HRC Steel, Stainless Steel
Insert Size Ic 16 "33"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VN
Cutting Edge Mat Cermet
