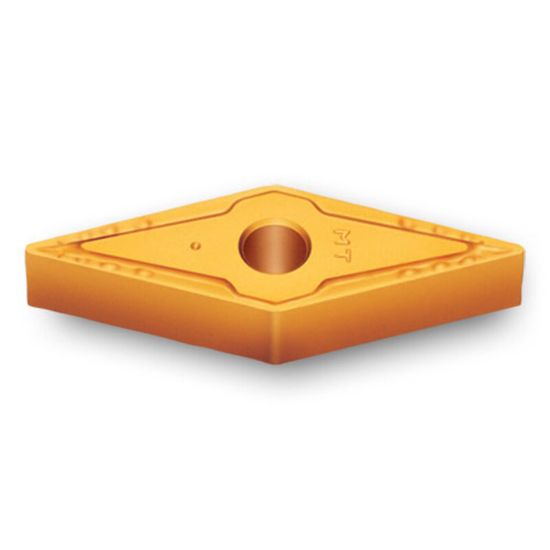

INGERSOLL VNMG2.531MT TT7015 Turning Insert 35.0° TiCN + Al2O3 0.016 Corner Radius

ANSI: VNMG2.531MT TT7015

ISO: VNMG130404MT TT7015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5523732
Delivery date: 3-5 days
$9.71

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Wear resistant CVD coated grade for general machining of gray and ductile cast irons in continuous and interrupted conditions

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Turning Insert
Package Size 10
Grade TT7015
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Finishing
Coating TiCN + Al2O3
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0160 0.41MM
Insert Size Ic 13 "2.5"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VN
Cutting Edge Mat Carbide
