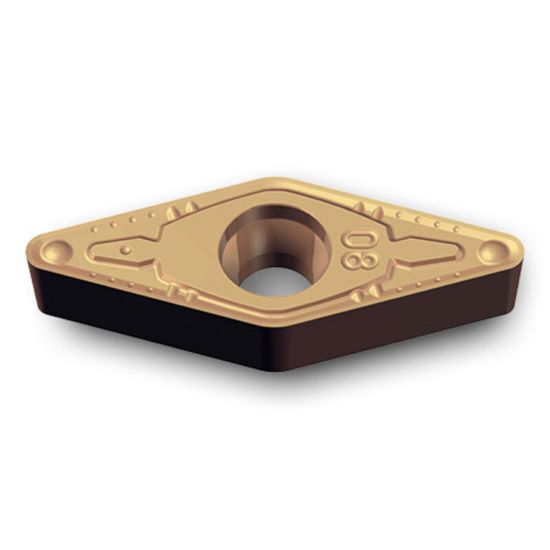

INGERSOLL VCMT332FM PV3010 Turning Insert 35.0° TiN 0.031 Corner Radius

ANSI: VCMT332FM PV3010

ISO: VCMT160408FM PV3010

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6155850
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

PVD coated Cermet grade with excellent wear resistance and low coefficient of friction for high speed finish turning of steels, stainless steels and cast irons with long tool life

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Turning Insert
Grade PV3010
Made In USA No
Package Size 10
Insert/Tool Insert
Insert Type Positive
Coating TiN
Shipping State Illinois
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Insert Size Ic 16 "33"
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat Cermet
Insert Style VC
