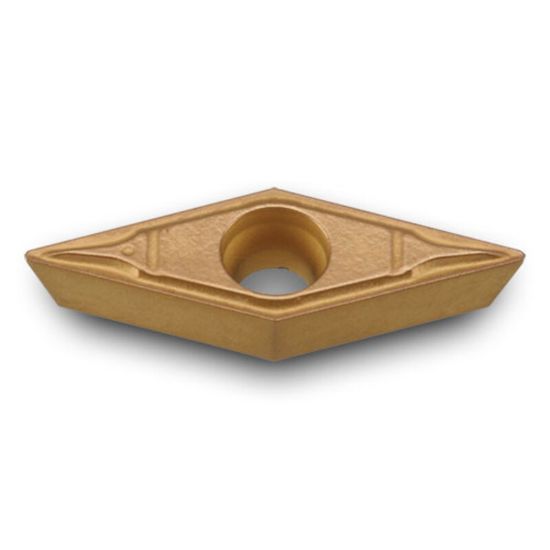

Picture of INGERSOLL VCMT1.51.50.5PC CT3000 Turning Insert 35.0° 0.008 Corner Radius

INGERSOLL VCMT1.51.50.5PC CT3000 Turning Insert 35.0° 0.008 Corner Radius

ANSI: VCMT1.51.50.5PC CT3000

ISO: VCMT080202PC CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5750173
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Package Size 10
Insert Application Finishing
Insert Type Positive
Grade CT3000
Insert/Tool Insert
Made In USA No
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Insert Size Ic 08 "1.5"
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VC
Cutting Edge Mat Cermet
