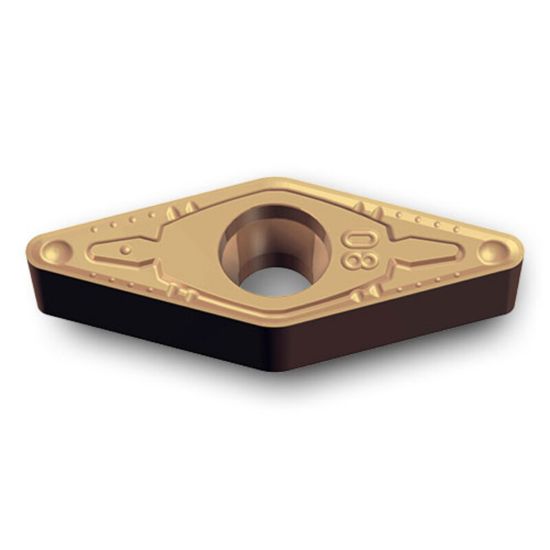

INGERSOLL VBMT221FM TT8125 Turning Insert 35.0° TiCN + Al2O3 + TiN 0.016 Corner Radius

ANSI: VBMT221FM TT8125

ISO: VBMT110304FM TT8125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6155637
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CVD coated grade for general turning of steel machining with good combination of wear resistance and toughness

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Turning Insert
Made In USA No
Grade TT8125
Coating TiCN + Al2O3 + TiN
Package Size 10
Insert Application Finishing
Insert Type Positive
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 11 "22"
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel
Cutting & Machining Properties
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Cutting Edge Mat Carbide
