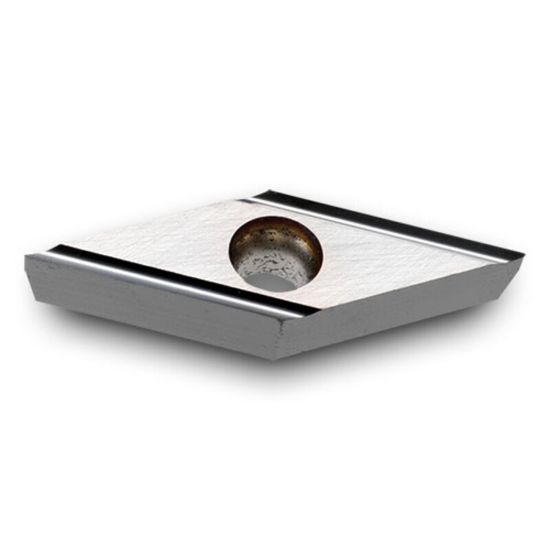

INGERSOLL VBET220.5L-GF CT3000 Turning Insert 35.0° 0.008 Corner Radius

ANSI: VBET220.5L-GF CT3000

ISO: VBET110302L GF CT3000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6136468
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Cermet grade for turning, grooving & parting of alloy steels & stainless steels with high surface quality and long tool life due to high wear resistance and low coefficient of friction

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Positive
Made In USA No
Shipping State Illinois
Grade CT3000
Application Turning Insert
Package Size 10
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 11 "22"
Corner Radius 0.0080 0.20MM
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
