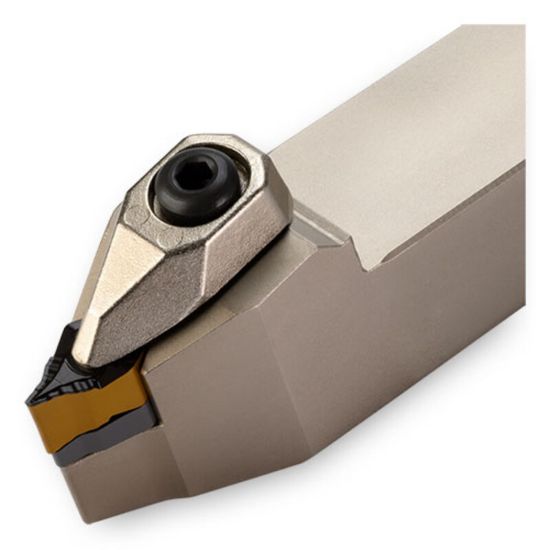

Picture of INGERSOLL TZXNN20-3.3D Turning Stick Tool Feed Turn Square 1.250 Steel

INGERSOLL TZXNN20-3.3D Turning Stick Tool Feed Turn Square 1.250 Steel

ANSI: TZXNN20-3.3D

ISO: TZXNN20-3.3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6211461
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

T-type Holder for external turning Accepts ZNMV inserts for high feed machining

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Feed Turning
Package Size 1
Insert Type Negative
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 14
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Over Hang 1.7300
Lead Angle 70°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Seat/Nest 6306251
Insert Style ZN
Fasteners & Connectors
Clamp/Wedge 6306254
Clamp Screw 4351611
Seat Screw 6141717
