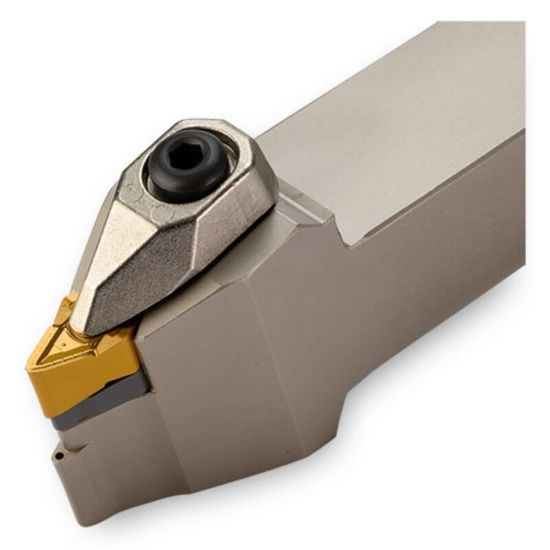

Picture of INGERSOLL TZXNN20-3.3D-TB Turning Stick Tool Feed Turn Square 1.250 Steel

INGERSOLL TZXNN20-3.3D-TB Turning Stick Tool Feed Turn Square 1.250 Steel

ANSI: TZXNN20-3.3D-TB

ISO: TZXNN20-3.3D-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6211462
Delivery date: 3-5 days
$367.73

Features And Benefits

T-type Holder for external turning Accepts ZNMV inserts for high feed machining High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Application Feed Turning, Ext.Turning
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Lead Angle 70°
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 14
Tool Over Hang 1.7300
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style ZN
Coolant Thru Yes
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Seat/Nest 6306251
Fasteners & Connectors
Clamp Screw 6168586
Seat Screw 6141717
Clamp/Wedge 6132052
