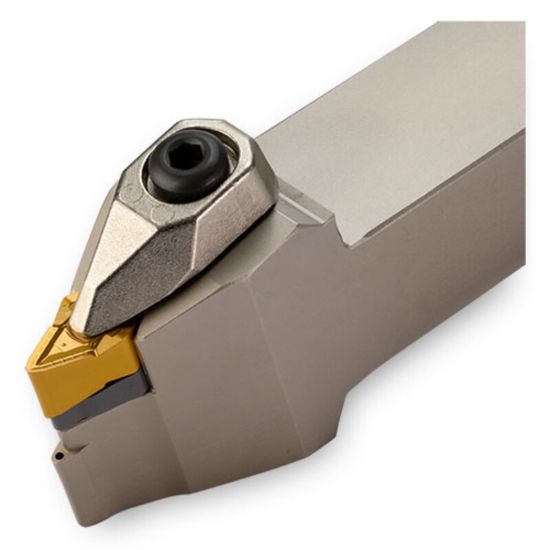

Picture of INGERSOLL TZXNN16-3.3D-TB Turning Stick Tool Feed Turn Square 1.000 Steel

INGERSOLL TZXNN16-3.3D-TB Turning Stick Tool Feed Turn Square 1.000 Steel

ANSI: TZXNN16-3.3D-TB

ISO: TZXNN16-3.3D-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6211460
Delivery date: 3-5 days
$327.60

Features And Benefits

T-type Holder for external turning Accepts ZNMV inserts for high feed machining High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Feed Turning, Ext.Turning
Made In USA No
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 70°
Insert Size Ic 14
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.7300
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Seat/Nest 6306251
Insert Style ZN
Fasteners & Connectors
Seat Screw 6141717
Clamp/Wedge 6132052
Clamp Screw 6168586
