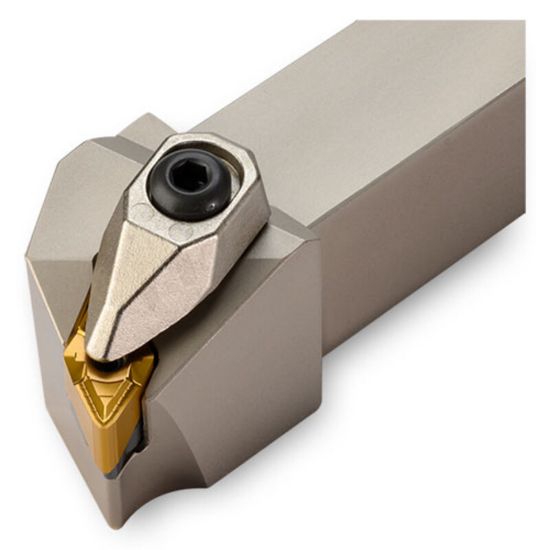

Picture of INGERSOLL TZQNR16-3.3D Turning Stick Tool Feed Turn Square 1.000 Steel

INGERSOLL TZQNR16-3.3D Turning Stick Tool Feed Turn Square 1.000 Steel

ANSI: TZQNR16-3.3D

ISO: TZQNR16-3.3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6211445
Delivery date: 3-5 days
$146.53

Features And Benefits

T-type Holder for external turning Accepts ZNMV inserts for high feed machining

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning, Feed Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 14
Clearance Angle 20.0°
Overall Len 6.0000 152.40MM
Lead Angle 20°
Tool Over Hang 1.5700
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style ZN
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Seat/Nest 6306251
Fasteners & Connectors
Clamp/Wedge 6306254
Seat Screw 6141717
Clamp Screw 4351611
