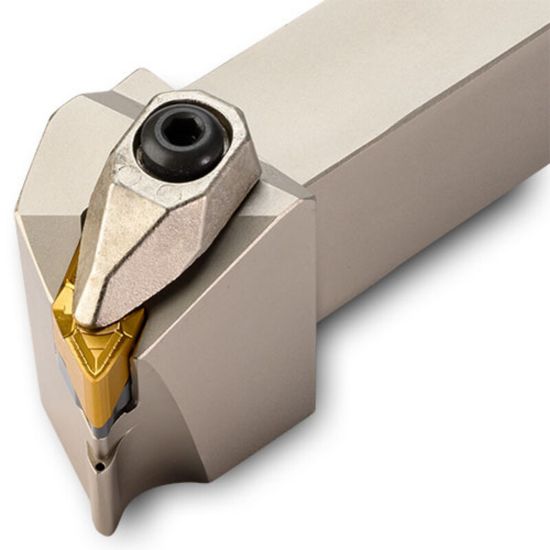

Picture of INGERSOLL TZQNR16-3.3D-TB Turning Stick Tool Feed Turn Square 1.000 Steel

INGERSOLL TZQNR16-3.3D-TB Turning Stick Tool Feed Turn Square 1.000 Steel

ANSI: TZQNR16-3.3D-TB

ISO: TZQNR16-3.3D-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6211447
Delivery date: 3-5 days
$327.60

Features And Benefits

T-type Holder for external turning Accepts ZNMV inserts for high feed machining High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Feed Turning, Ext.Turning
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Lead Angle 20°
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.5700
Insert Size Ic 14
Shank/Pilot Dia 1.0000 25.40MM
Clearance Angle 20.0°
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Seat/Nest 6306251
Coolant Thru Yes
Insert Style ZN
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Fasteners & Connectors
Seat Screw 6141717
Clamp/Wedge 6132052
Clamp Screw 6168586
