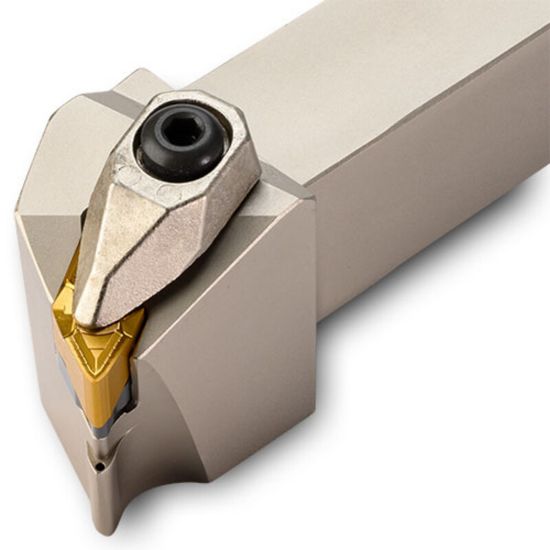

Picture of INGERSOLL TZQNL16-3.3D-TB Turning Stick Tool Feed Turn Square 1.000 Steel

INGERSOLL TZQNL16-3.3D-TB Turning Stick Tool Feed Turn Square 1.000 Steel

ANSI: TZQNL16-3.3D-TB

ISO: TZQNL16-3.3D-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6211449
Delivery date: 3-5 days
$327.60

Features And Benefits

T-type Holder for external turning Accepts ZNMV inserts for high feed machining High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Feed Turning, Ext.Turning
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 14
Clearance Angle 20.0°
Overall Len 6.0000 152.40MM
Lead Angle 20°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Stick Tool
Tool Over Hang 1.5700
Tool Material Steel
Cutting & Machining Properties
Insert Style ZN
Insert Shape/Cutter Pocket Shape 35.0°
Seat/Nest 6306251
Hand R/L Left
Coolant Thru Yes
Inter/Extern External
Fasteners & Connectors
Clamp/Wedge 6132052
Clamp Screw 6168586
Seat Screw 6141717
