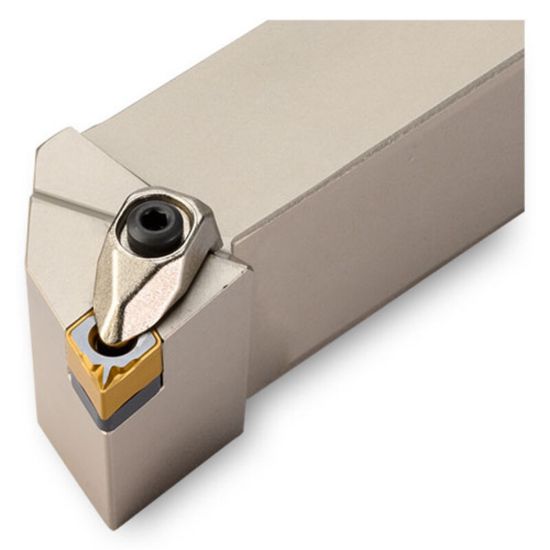

Picture of INGERSOLL TXJNR12-2.7B Turning Stick Tool 70.0° Square 0.750 Steel

INGERSOLL TXJNR12-2.7B Turning Stick Tool 70.0° Square 0.750 Steel

ANSI: TXJNR12-2.7B

ISO: TXJNR12-2.7B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6213202
Delivery date: 3-5 days
$115.73

Features And Benefits

T-type Holder for external turning Accepts negative 70° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Package Size 1
Application Ext.Turning
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 09 "2.7"
Lead Angle 93°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Over Hang 0.9800
Clearance Angle 15.0°
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Insert Style XN
Inter/Extern External
Seat/Nest 6317066
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Fasteners & Connectors
Seat Screw 4351689
Clamp/Wedge 6120126
