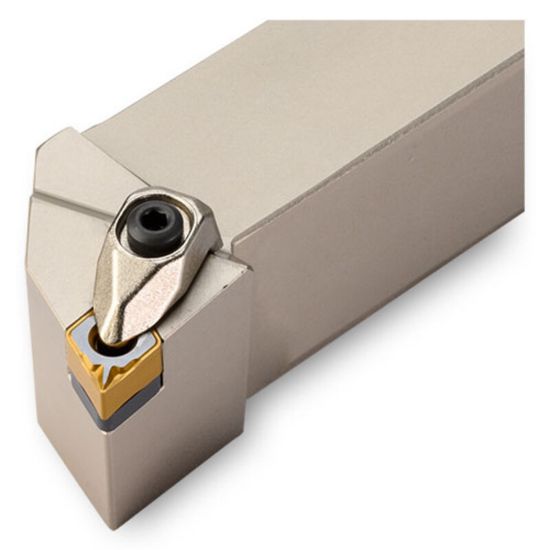

Picture of INGERSOLL TXJNL16-3.5D Turning Stick Tool 70.0° Square 1.000 Steel

INGERSOLL TXJNL16-3.5D Turning Stick Tool 70.0° Square 1.000 Steel

ANSI: TXJNL16-3.5D

ISO: TXJNL16-3.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6213209
Delivery date: 3-5 days
$122.27

Features And Benefits

T-type Holder for external turning Accepts negative 70° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 3.5
Clearance Angle 15.0°
Overall Len 6.0000 152.40MM
Tool Over Hang 1.2600
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Seat/Nest 6177486
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Inter/Extern External
Insert Style XN
Fasteners & Connectors
Clamp/Wedge 6120128
Clamp Screw 4351489
Seat Screw 4351488
