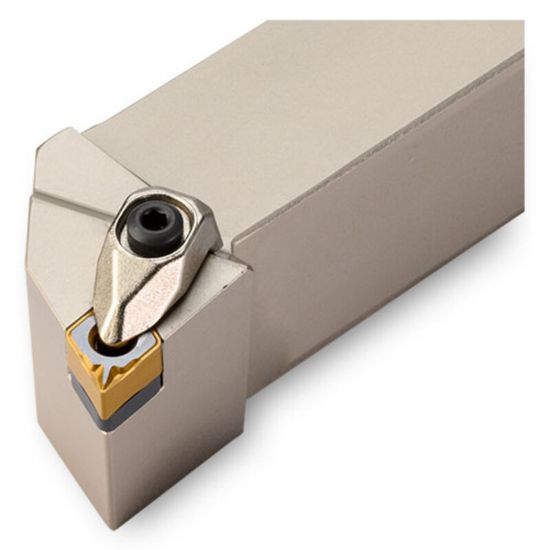

Picture of INGERSOLL TXJNL16-2.7D Turning Stick Tool 70.0° Square 1.000 Steel

INGERSOLL TXJNL16-2.7D Turning Stick Tool 70.0° Square 1.000 Steel

ANSI: TXJNL16-2.7D

ISO: TXJNL16-2.7D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6213207
Delivery date: 3-5 days
$122.27

Features And Benefits

T-type Holder for external turning Accepts negative 70° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Insert Size Ic 09 "2.7"
Lead Angle 93°
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Over Hang 0.9800
Tool Material Steel
Machine Side Connection Type Stick Tool
Clearance Angle 15.0°
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Seat/Nest 6317066
Insert Style XN
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Inter/Extern External
Fasteners & Connectors
Clamp/Wedge 6120126
Seat Screw 4351689
