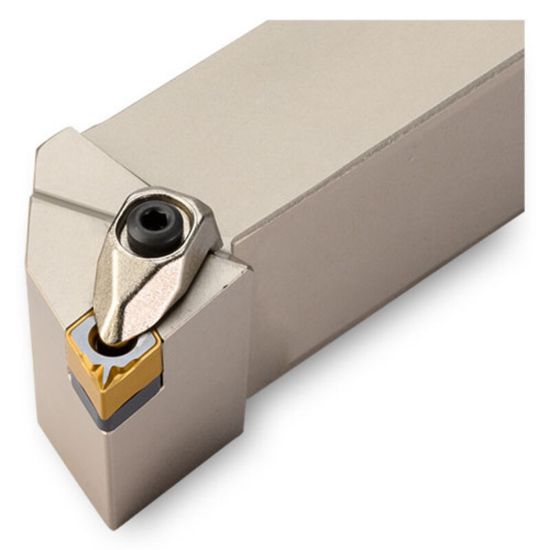

INGERSOLL TXJNL12-3.5B Turning Stick Tool 70.0° Square 0.750 Steel

ANSI: TXJNL12-3.5B

ISO: TXJNL12-3.5B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6213205
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

T-type Holder for external turning Accepts negative 70° rhombic inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 4.5000 114.30MM
Lead Angle 93°
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 3.5
Clearance Angle 15.0°
Tool Over Hang 1.2600
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style XN
Inter/Extern External
Seat/Nest 6177486
Fasteners & Connectors
Clamp/Wedge 6120128
Clamp Screw 4351489
Seat Screw 4351488
