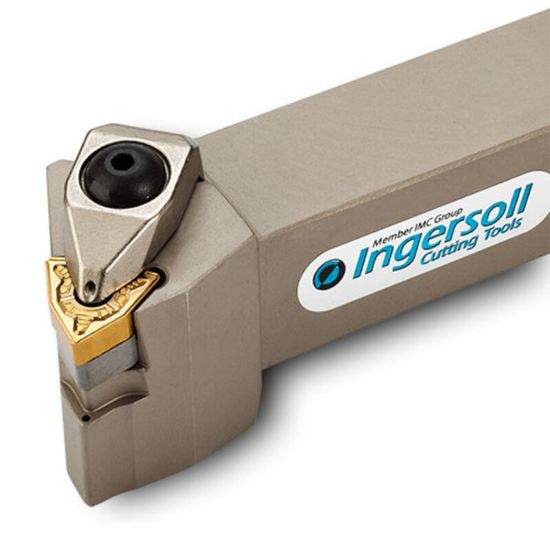

Picture of INGERSOLL TWLNL20-4D-TB Turning Stick Tool Trigon Square 1.250 Steel

INGERSOLL TWLNL20-4D-TB Turning Stick Tool Trigon Square 1.250 Steel

ANSI: TWLNL20-4D-TB

ISO: TWLNL20-4D-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6187241
Delivery date: 3-5 days
$299.60

Features And Benefits

T-type Holder for external turning Accepts negative 80° trigon inserts High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Dimensional Specifications
Lead Angle 95°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 12 "43"
Overall Len 6.0000 152.40MM
Tool Over Hang 1.2600
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Seat/Nest 4352024
Insert Style WN
Coolant Thru Yes
Inter/Extern External
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge 6132052
Seat Screw 4350825
Clamp Screw 6168586
