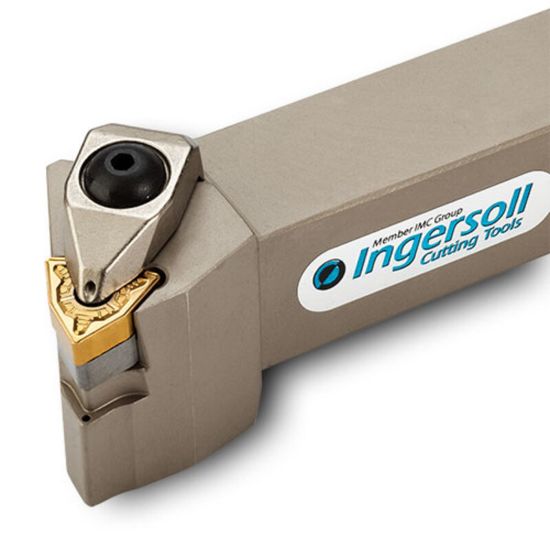

Picture of INGERSOLL TWLNL16-4D-TB Turning Stick Tool Trigon Square 1.000 Steel

INGERSOLL TWLNL16-4D-TB Turning Stick Tool Trigon Square 1.000 Steel

ANSI: TWLNL16-4D-TB

ISO: TWLNL16-4D-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6187243
Delivery date: 3-5 days
$271.60

Features And Benefits

T-type Holder for external turning Accepts negative 80° trigon inserts High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 12 "43"
Lead Angle 95°
Tool Over Hang 1.2600
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Insert Style WN
Hand R/L Left
Insert Shape/Cutter Pocket Shape Trigon
Seat/Nest 4352024
Coolant Thru Yes
Fasteners & Connectors
Clamp/Wedge 6132052
Clamp Screw 6168586
Seat Screw 4350825
