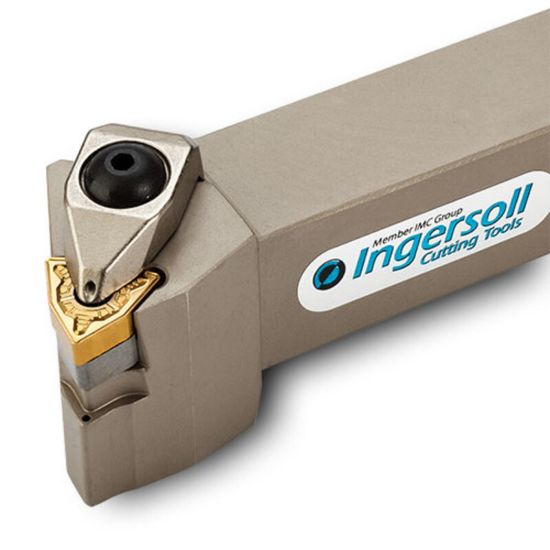

Picture of INGERSOLL TWLNL12-4B-TB Turning Stick Tool Trigon Square 0.750 Steel

INGERSOLL TWLNL12-4B-TB Turning Stick Tool Trigon Square 0.750 Steel

ANSI: TWLNL12-4B-TB

ISO: TWLNL12-4B-TB

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6187239
Delivery date: 3-5 days
$259.47

Features And Benefits

T-type Holder for external turning Accepts negative 80° trigon inserts High pressure coolant

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Turning
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 12 "43"
Lead Angle 95°
Tool Over Hang 1.2600
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Trigon
Seat/Nest 4352024
Insert Style WN
Coolant Thru Yes
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge 6132052
Clamp Screw 6168586
Seat Screw 4350825
