  • INGERSOLL TUGSM22D050-08-00 Milling Cutter 75.0° 1.967 Shell Arbor 0.8661 8 Flute Coolant 0.4331 Max DOC 2.165 OAL

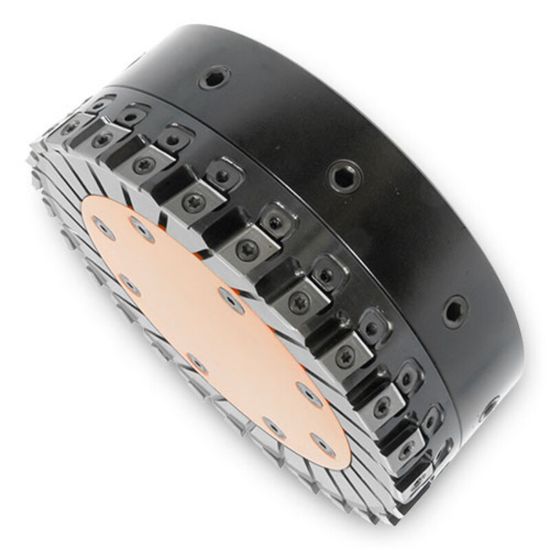

Picture of INGERSOLL TUGSM22D050-08-00 Milling Cutter 75.0° 1.967 Shell Arbor 0.8661 8 Flute Coolant 0.4331 Max DOC 2.165 OAL

INGERSOLL TUGSM22D050-08-00 Milling Cutter 75.0° 1.967 Shell Arbor 0.8661 8 Flute Coolant 0.4331 Max DOC 2.165 OAL

ANSI: TUGSM22D050-08-00

ISO: TUGSM22D050-08-00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2726292
Delivery date: 3-5 days
$1,157.33
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Face Milling
Package Size 1
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cut Dia Max 1.9690 50.01MM
Tool Material Aluminum/Steel
Overall Len 2.1654 55.00MM
Flutes/Inserts 8
Depth Of Cut Max 0.4331
Cut Dia Min 1.9130 48.59MM
Cutting & Machining Properties
Insert Style PC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
