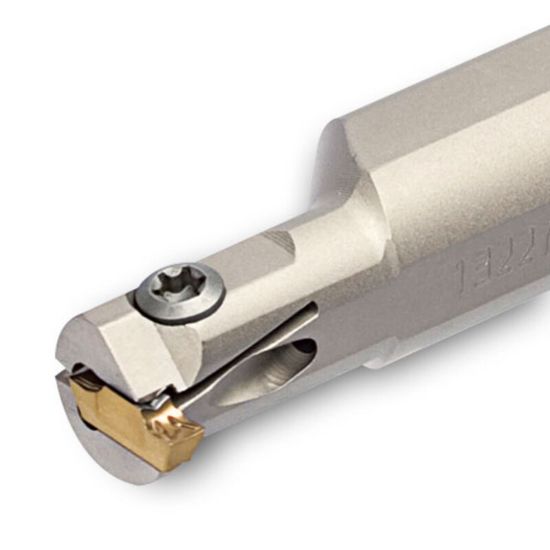

Picture of INGERSOLL TTSIR9.5-12.5-2 Grooving,Groove Turning Boring Bar Boring Bar 0.375 Steel

INGERSOLL TTSIR9.5-12.5-2 Grooving,Groove Turning Boring Bar Boring Bar 0.375 Steel

ANSI: TTSIR9.5-12.5-2

ISO: TTSIR9.5-12.5-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163879
Delivery date: 3-5 days
$188.93

Features And Benefits

Tool holders internal grooving and turning on small diameters

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.0940
Overall Len 5.0000 127.00MM
Insert Size Ic 2
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
Inter/Extern Internal
Insert Style TD
