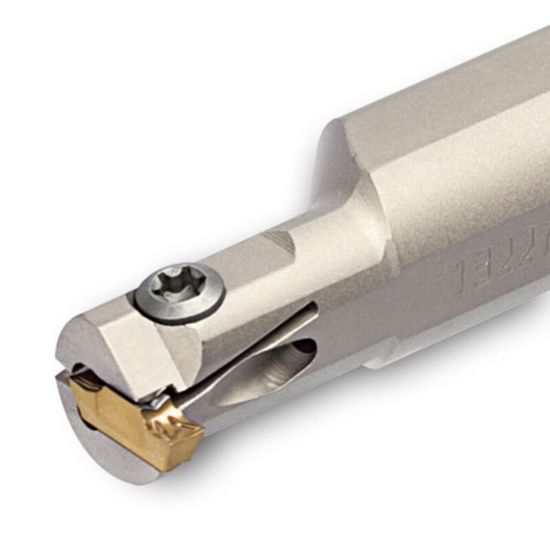

Picture of INGERSOLL TTSIR19-20-3 Grooving,Groove Turning Boring Bar Boring Bar 0.750 Steel

INGERSOLL TTSIR19-20-3 Grooving,Groove Turning Boring Bar Boring Bar 0.750 Steel

ANSI: TTSIR19-20-3

ISO: TTSIR19-20-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163895
Delivery date: 3-5 days
$221.00

Features And Benefits

Tool holders internal grooving and turning on small diameters

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Boring Bar
Depth Of Cut Max 0.1570
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 6.0000 152.40MM
Insert Size Ic 3
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TD
