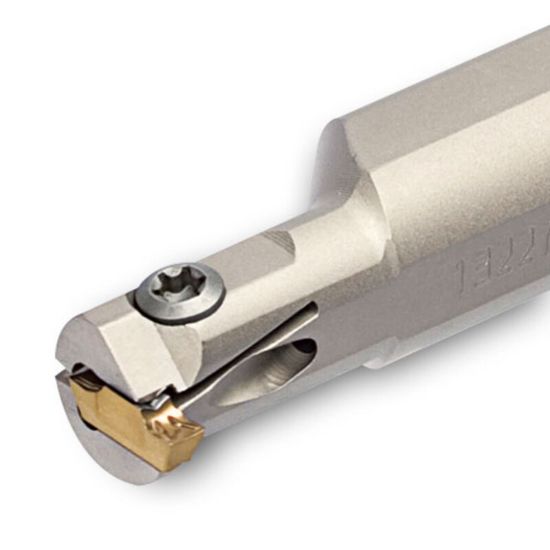

Picture of INGERSOLL TTSIL9.5-12.5-3 Grooving,Groove Turning Boring Bar Boring Bar 0.375 Steel

INGERSOLL TTSIL9.5-12.5-3 Grooving,Groove Turning Boring Bar Boring Bar 0.375 Steel

ANSI: TTSIL9.5-12.5-3

ISO: TTSIL9.5-12.5-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163889
Delivery date: 3-5 days
$208.00

Features And Benefits

Tool holders internal grooving and turning on small diameters

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Insert Size Ic 3
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 5.0000 127.00MM
Depth Of Cut Max 0.0940
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Cutting & Machining Properties
Insert Style TD
Hand R/L Left
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
