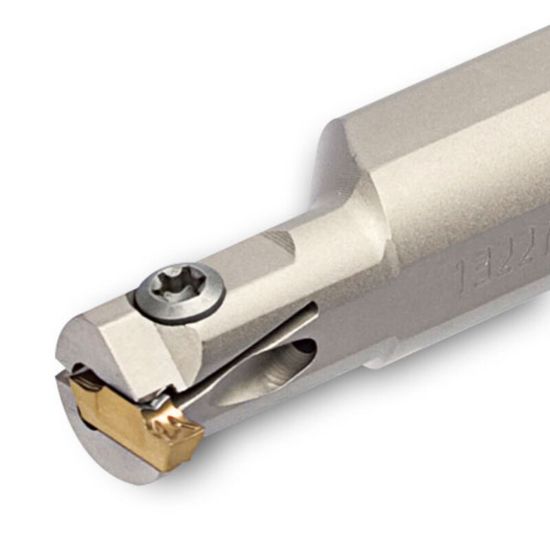

Picture of INGERSOLL TTSIL15.9-14-3 Grooving,Groove Turning Boring Bar Boring Bar 0.625 Steel

INGERSOLL TTSIL15.9-14-3 Grooving,Groove Turning Boring Bar Boring Bar 0.625 Steel

ANSI: TTSIL15.9-14-3

ISO: TTSIL15.9-14-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163894
Delivery date: 3-5 days
$210.60

Features And Benefits

Tool holders internal grooving and turning on small diameters

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Int.Groove Turning, Int.Grooving
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Overall Len 6.0000 152.40MM
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Depth Of Cut Max 0.1020
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Left
Insert Style TD
