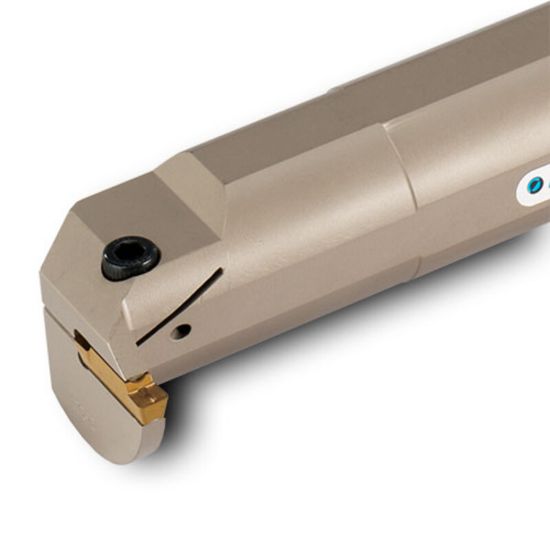

Picture of INGERSOLL TTIR38.1-3C-T12 Grooving,Groove Turning Boring Bar Boring Bar 1.500 Steel

INGERSOLL TTIR38.1-3C-T12 Grooving,Groove Turning Boring Bar Boring Bar 1.500 Steel

ANSI: TTIR38.1-3C-T12

ISO: TTIR38.1-3C-T12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163784
Delivery date: 3-5 days
$477.53

Features And Benefits

Long Tmax internal turning, grooving and profiling holders

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Int.Groove Turning, Int.Grooving
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Depth Of Cut Max 0.4700
Tool Material Steel
Min Bore 0.4700
Overall Len 12.0000 304.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru Yes
Hand R/L Right
Insert Style TD
