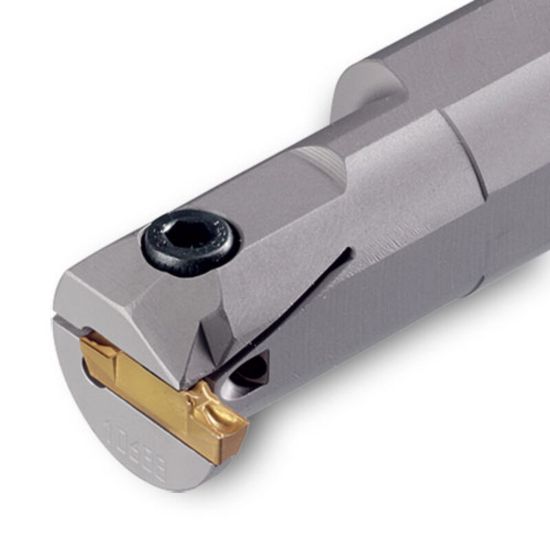

Picture of INGERSOLL TTIR31.7-6C Grooving,Groove Turning Boring Bar Boring Bar 1.250 Steel

INGERSOLL TTIR31.7-6C Grooving,Groove Turning Boring Bar Boring Bar 1.250 Steel

ANSI: TTIR31.7-6C

ISO: TTIR31.7-6C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830084
Delivery date: 3-5 days
$352.73

Features And Benefits

Internal turning, grooving and profiling holders

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Min Bore 1.2600
Overall Len 10.0000 254.00MM
Insert Size Ic 6
Depth Of Cut Max 0.2600
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style TD
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
Coolant Thru Yes
