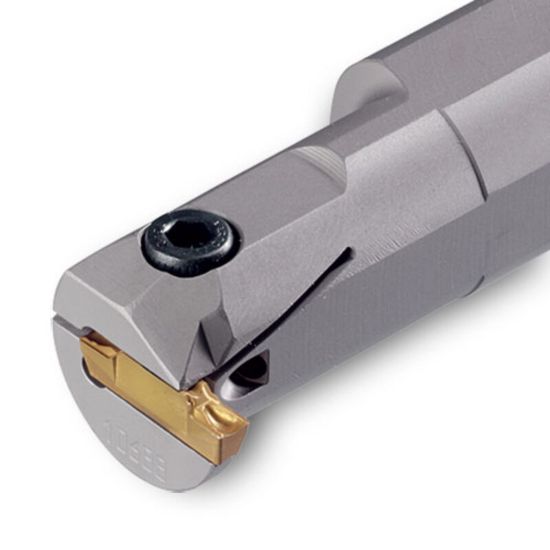

Picture of INGERSOLL TTIR25.4-4C Grooving,Groove Turning Boring Bar Boring Bar 1.000 Steel

INGERSOLL TTIR25.4-4C Grooving,Groove Turning Boring Bar Boring Bar 1.000 Steel

ANSI: TTIR25.4-4C

ISO: TTIR25.4-4C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830078
Delivery date: 3-5 days
$292.93

Features And Benefits

Internal turning, grooving and profiling holders

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Package Size 1
Dimensional Specifications
Overall Len 8.0000 203.20MM
Min Bore 0.9800
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 4
Tool Material Steel
Depth Of Cut Max 0.2300
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Right
Insert Style TD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Dog Bone
