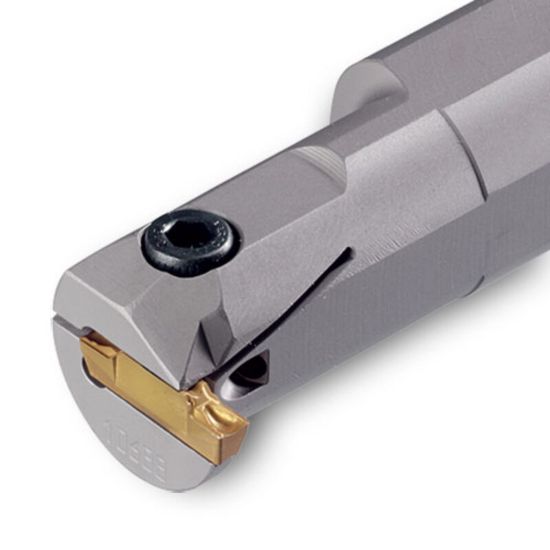

Picture of INGERSOLL TTIR19-3C Grooving,Groove Turning Boring Bar Boring Bar 0.750 Steel

INGERSOLL TTIR19-3C Grooving,Groove Turning Boring Bar Boring Bar 0.750 Steel

ANSI: TTIR19-3C

ISO: TTIR19-3C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830074
Delivery date: 3-5 days
$228.80

Features And Benefits

Internal turning, grooving and profiling holders

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Int.Grooving, Int.Groove Turning
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 3
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Min Bore 0.9800
Depth Of Cut Max 0.2600
Overall Len 6.5000 165.10MM
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Right
Coolant Thru Yes
Insert Style TD
