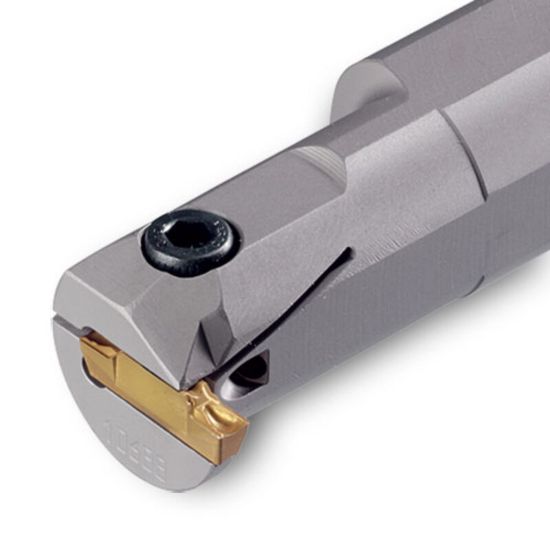

Picture of INGERSOLL TTIL31.7-4C Grooving,Groove Turning Boring Bar Boring Bar 1.250 Steel

INGERSOLL TTIL31.7-4C Grooving,Groove Turning Boring Bar Boring Bar 1.250 Steel

ANSI: TTIL31.7-4C

ISO: TTIL31.7-4C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830158
Delivery date: 3-5 days
$352.73

Features And Benefits

Internal turning, grooving and profiling holders

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Int.Groove Turning, Int.Grooving
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Boring Bar
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Min Bore 1.2600
Depth Of Cut Max 0.2600
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 10.0000 254.00MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Dog Bone
Coolant Thru Yes
Hand R/L Left
Insert Style TD
