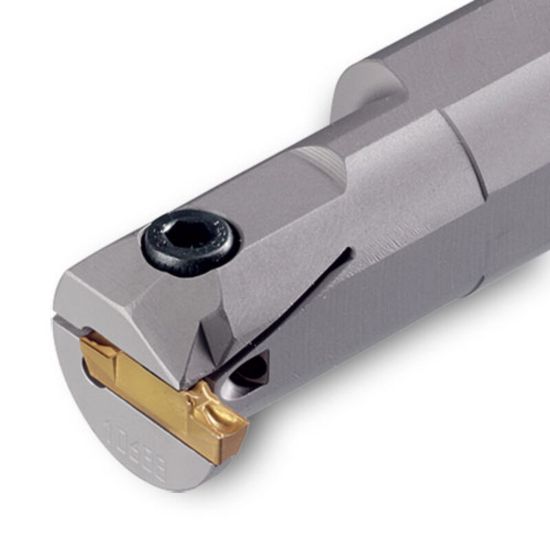

Picture of INGERSOLL TTIL19-3C Grooving,Groove Turning Boring Bar Boring Bar 0.750 Steel

INGERSOLL TTIL19-3C Grooving,Groove Turning Boring Bar Boring Bar 0.750 Steel

ANSI: TTIL19-3C

ISO: TTIL19-3C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830075
Delivery date: 3-5 days
$228.80

Features And Benefits

Internal turning, grooving and profiling holders

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Int.Groove Turning, Int.Grooving
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2600
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.5000 165.10MM
Insert Size Ic 3
Machine Side Connection Type Boring Bar
Min Bore 0.9800
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
Coolant Thru Yes
Insert Style TD
Hand R/L Left
