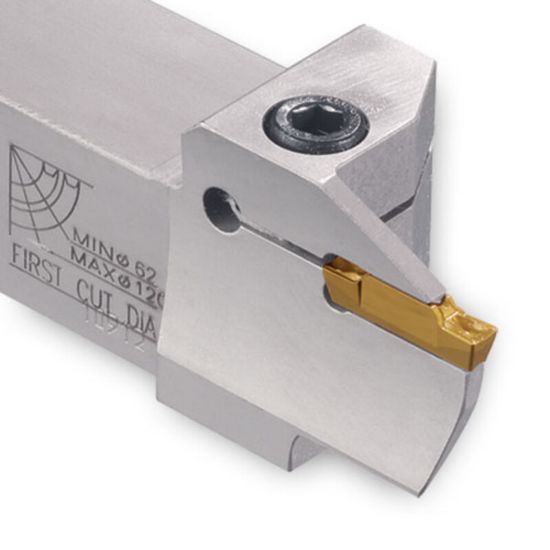

Picture of INGERSOLL TTFR25.4-70-6RN Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFR25.4-70-6RN Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFR25.4-70-6RN

ISO: TTFR25.4-70-6RN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2800258
Delivery date: 3-5 days
$206.27

Features And Benefits

Deep face grooving and turning holders (renewed type)

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Face Grooving
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 6
Depth Of Cut Max 0.9800
Machine Side Connection Size 1.0000 25.40MM
Face Groove Max Dia 3.9400
Overall Len 6.0000 152.40MM
Tool Over Hang 1.9300
Face Groove Min Dia 2.2800
Cutting & Machining Properties
Insert Style TD
Insert Shape/Cutter Pocket Shape Dog Bone
Coolant Thru No
Inter/Extern External
