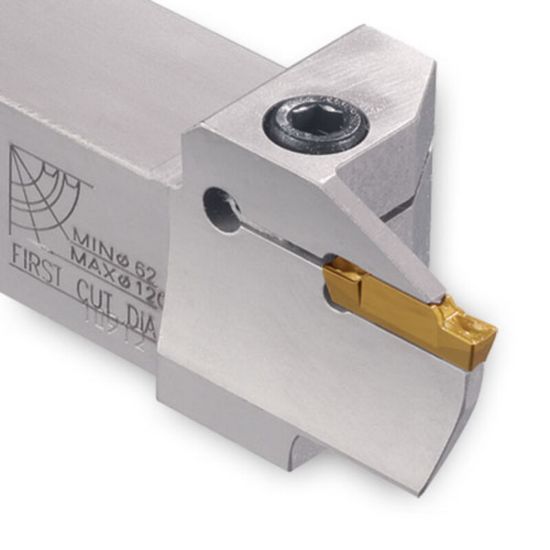

Picture of INGERSOLL TTFR25.4-70-3RN Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFR25.4-70-3RN Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFR25.4-70-3RN

ISO: TTFR25.4-70-3RN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830146
Delivery date: 3-5 days
$174.20

Features And Benefits

Deep face grooving and turning holders (renewed type)

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Application Face Grooving
Shipping State Illinois
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Over Hang 1.5000
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Max Dia 3.9400
Depth Of Cut Max 0.5900
Overall Len 6.0000 152.40MM
Face Groove Min Dia 2.5200
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 3
Cutting & Machining Properties
Inter/Extern External
Insert Style TD
Coolant Thru No
