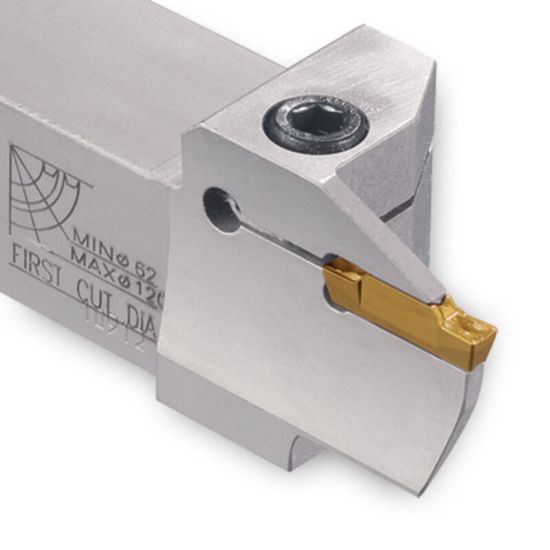

Picture of INGERSOLL TTFR25.4-100-6RN Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFR25.4-100-6RN Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFR25.4-100-6RN

ISO: TTFR25.4-100-6RN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163483
Delivery date: 3-5 days
$206.27

Features And Benefits

Deep face grooving and turning holders (renewed type)

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 6
Face Groove Min Dia 3.4600
Face Groove Max Dia 7.0900
Tool Material Steel
Depth Of Cut Max 0.9800
Overall Len 6.0000 152.40MM
Tool Over Hang 1.9300
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Coolant Thru No
Insert Style TD
Inter/Extern External
