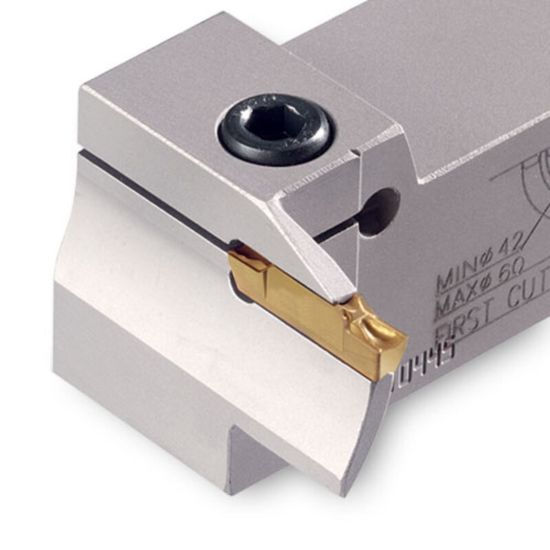

Picture of INGERSOLL TTFPR25.4-40-3 Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFPR25.4-40-3 Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFPR25.4-40-3

ISO: TTFPR25.4-40-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830154
Delivery date: 3-5 days
$174.20

Features And Benefits

Deep face grooving and turning perpendicular holders against center

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Perpendicular Groove Facing
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 3
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Min Dia 1.3400
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Face Groove Max Dia 1.9700
Depth Of Cut Max 0.3900
Tool Over Hang 0.7100
Cutting & Machining Properties
Insert Style TD
Hand R/L Right
Inter/Extern External
Coolant Thru No
