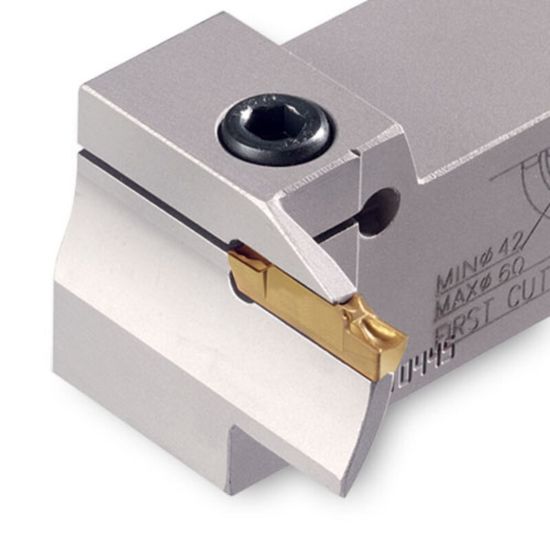

Picture of INGERSOLL TTFPL25.4-85-6 Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFPL25.4-85-6 Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFPL25.4-85-6

ISO: TTFPL25.4-85-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830071
Delivery date: 3-5 days
$178.53

Features And Benefits

Deep face grooving and turning perpendicular holders against center

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Type Positive
Insert Application General Purpose
Application Perpendicular Groove Facing
Shipping State Illinois
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.7900
Face Groove Max Dia 5.9100
Face Groove Min Dia 2.8700
Tool Over Hang 0.8700
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 6
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Insert Style TD
Insert Shape/Cutter Pocket Shape Dog Bone
Coolant Thru No
