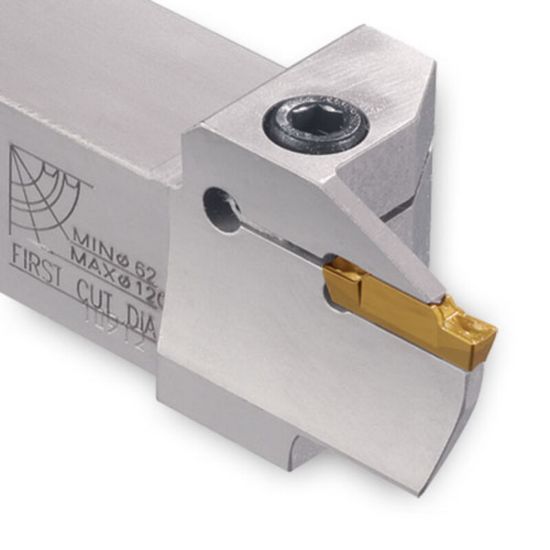

Picture of INGERSOLL TTFL25.4-70-3RN Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFL25.4-70-3RN Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFL25.4-70-3RN

ISO: TTFL25.4-70-3RN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830141
Delivery date: 3-5 days
$174.20

Features And Benefits

Deep face grooving and turning holders (renewed type)

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Application Face Grooving
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 3
Tool Over Hang 1.5000
Face Groove Max Dia 3.9400
Depth Of Cut Max 0.5900
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Face Groove Min Dia 2.5200
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Coolant Thru No
Inter/Extern External
Insert Style TD
