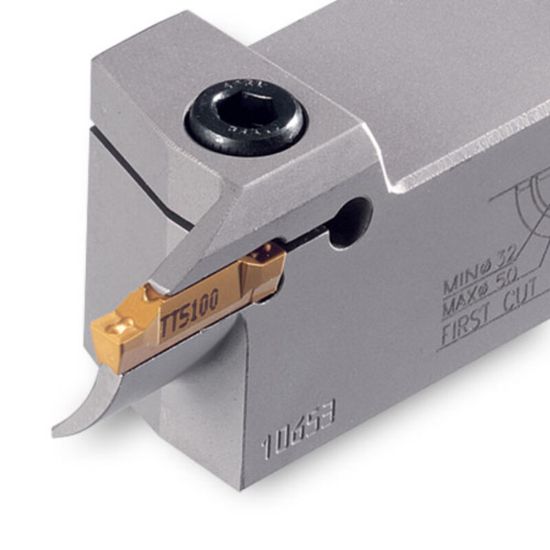

Picture of INGERSOLL TTFL25.4-30-4 Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFL25.4-30-4 Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFL25.4-30-4

ISO: TTFL25.4-30-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2830047
Delivery date: 3-5 days
$174.20

Features And Benefits

Deep face grooving and turning holders

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Package Size 1
Insert Application General Purpose
Application Face Grooving
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Face Groove Min Dia 0.8700
Overall Len 6.0000 152.40MM
Face Groove Max Dia 1.5700
Depth Of Cut Max 0.3900
Machine Side Connection Size 1.0000 25.40MM
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.3000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Coolant Thru No
Insert Style TD
Inter/Extern External
Hand R/L Left
