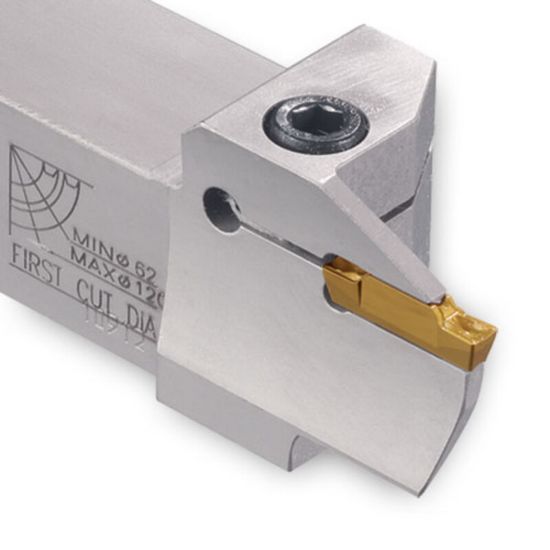

Picture of INGERSOLL TTFL25.4-180-6RN Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFL25.4-180-6RN Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFL25.4-180-6RN

ISO: TTFL25.4-180-6RN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163486
Delivery date: 3-5 days
$206.27

Features And Benefits

Deep face grooving and turning holders (renewed type)

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Face Grooving
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Min Dia 6.6100
Shank/Pilot Dia 1.0000 25.40MM
Face Groove Max Dia 15.7500
Depth Of Cut Max 0.9800
Machine Side Connection Size 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Tool Over Hang 1.9300
Insert Size Ic 6
Cutting & Machining Properties
Insert Style TD
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Coolant Thru No
