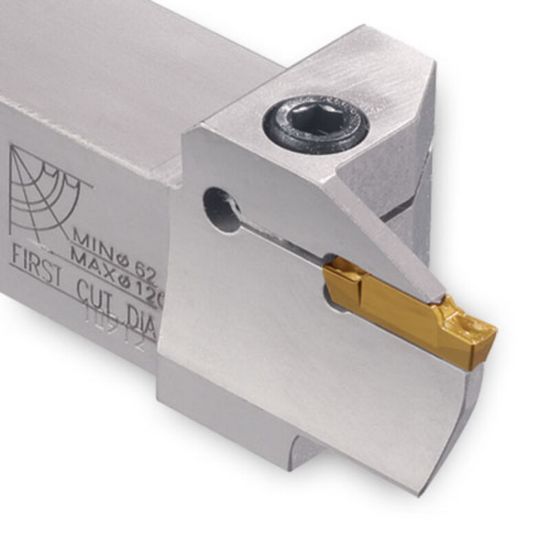

Picture of INGERSOLL TTFL25.4-100-6RN Face Grooving Stick Tool Square 1.000 Steel

INGERSOLL TTFL25.4-100-6RN Face Grooving Stick Tool Square 1.000 Steel

ANSI: TTFL25.4-100-6RN

ISO: TTFL25.4-100-6RN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6163484
Delivery date: 3-5 days
$206.27

Features And Benefits

Deep face grooving and turning holders (renewed type)

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Face Grooving
Dimensional Specifications
Face Groove Min Dia 3.4600
Overall Len 6.0000 152.40MM
Face Groove Max Dia 7.0900
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 6
Tool Material Steel
Machine Side Connection Type Stick Tool
Depth Of Cut Max 0.9800
Tool Over Hang 1.9300
Cutting & Machining Properties
Insert Style TD
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern External
Coolant Thru No
