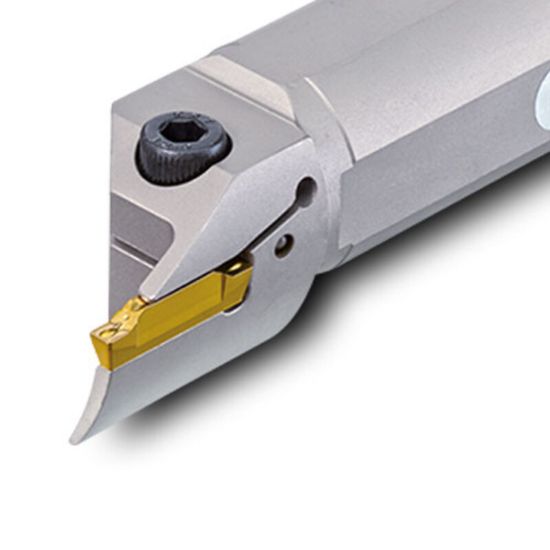

Picture of INGERSOLL TTFIR25.4-3T12-42-60 Face Grooving Boring Bar Boring Bar 1.000 Steel

INGERSOLL TTFIR25.4-3T12-42-60 Face Grooving Boring Bar Boring Bar 1.000 Steel

ANSI: TTFIR25.4-3T12-42-60

ISO: TTFIR25.4-3T12-42-60

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6114688
Delivery date: 3-5 days
$320.67

Features And Benefits

Internal face grooving and face turning holders

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Shipping State Illinois
Package Size 1
Dimensional Specifications
Insert Size Ic 3
Depth Of Cut Max 0.4720
Face Groove Max Dia 2.3620
Overall Len 8.0000 203.20MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Over Hang 1.2200
Face Groove Min Dia 1.6500
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Inter/Extern Internal
Insert Style TD
