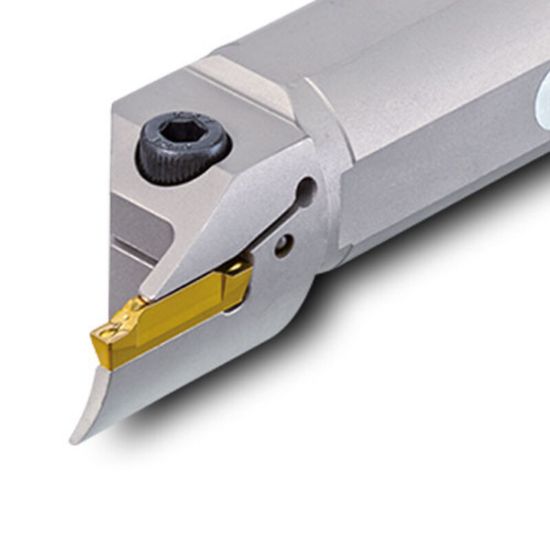

Picture of INGERSOLL TTFIL31.7-4T12-47-70 Face Grooving Boring Bar Boring Bar 1.250 Steel

INGERSOLL TTFIL31.7-4T12-47-70 Face Grooving Boring Bar Boring Bar 1.250 Steel

ANSI: TTFIL31.7-4T12-47-70

ISO: TTFIL31.7-4T12-47-70

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6114677
Delivery date: 3-5 days
$399.53

Features And Benefits

Internal face grooving and face turning holders

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert/Tool Tool
Application Face Grooving
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Tool Over Hang 1.2200
Face Groove Min Dia 1.8500
Face Groove Max Dia 2.7560
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.4720
Overall Len 10.0000 254.00MM
Insert Size Ic 4
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style TD
Hand R/L Left
Coolant Thru Yes
Inter/Extern Internal
