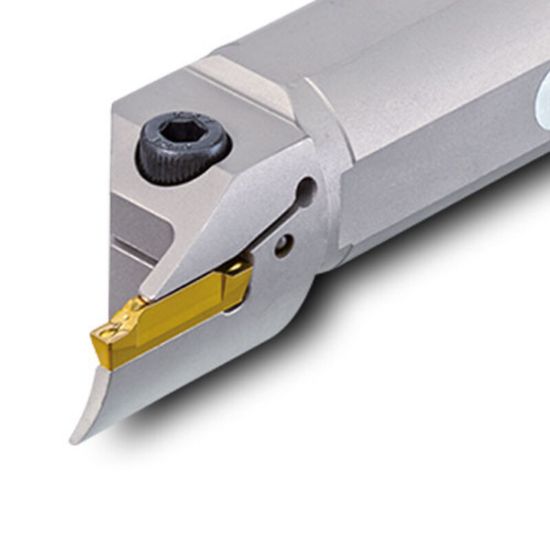

Picture of INGERSOLL TTFIL25.4-4T12-26-42 Face Grooving Boring Bar Boring Bar 1.000 Steel

INGERSOLL TTFIL25.4-4T12-26-42 Face Grooving Boring Bar Boring Bar 1.000 Steel

ANSI: TTFIL25.4-4T12-26-42

ISO: TTFIL25.4-4T12-26-42

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6114681
Delivery date: 3-5 days
$320.67

Features And Benefits

Internal face grooving and face turning holders

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Face Groove Max Dia 1.6530
Insert Size Ic 4
Tool Material Steel
Depth Of Cut Max 0.4720
Overall Len 8.0000 203.20MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Over Hang 1.2200
Face Groove Min Dia 1.0240
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Coolant Thru Yes
Inter/Extern Internal
Insert Style TD
Hand R/L Left
